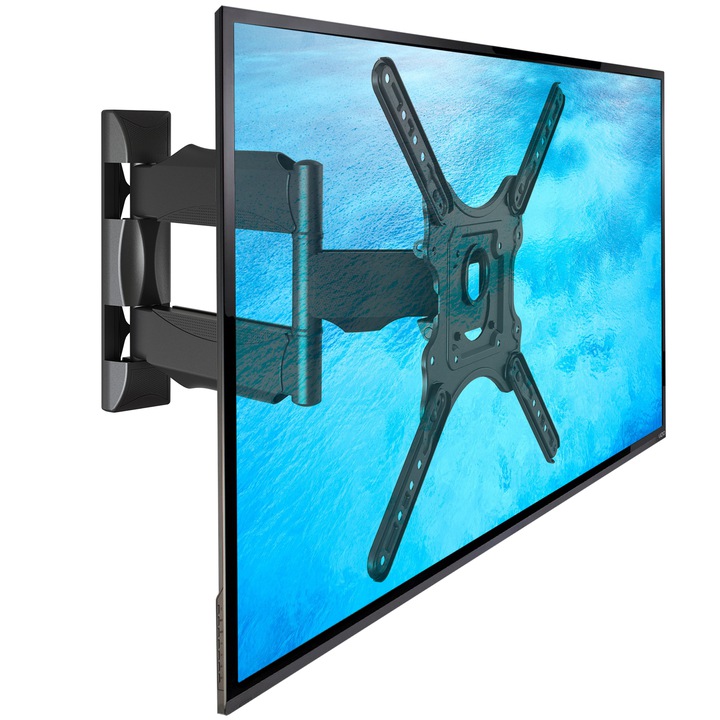

Swivel Mount for 32 '- 55' LCD LED TV

SKU: FS9100211
Adjustable distance from the wall: 53 ~ 499mm.TV size: 32 "- 55"
Reproduction is welcome and allowed for free circulation only.

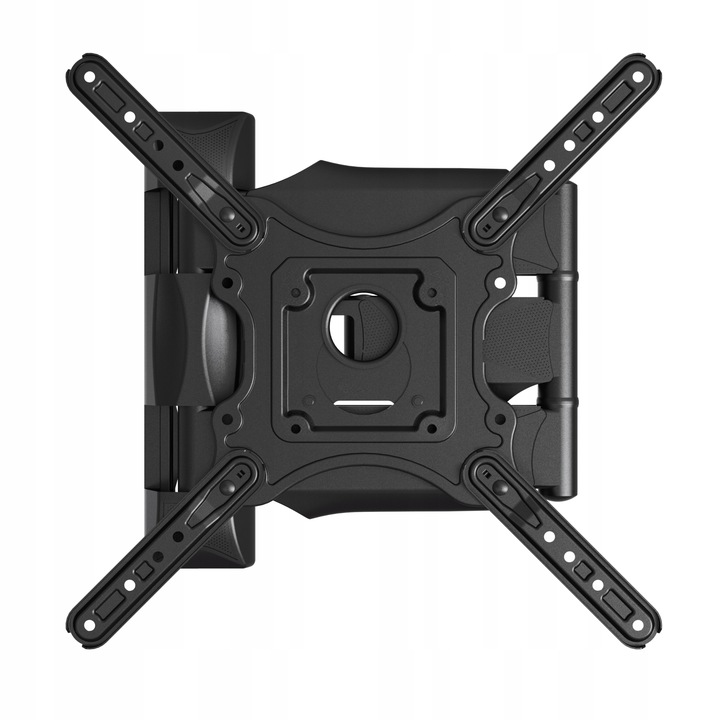

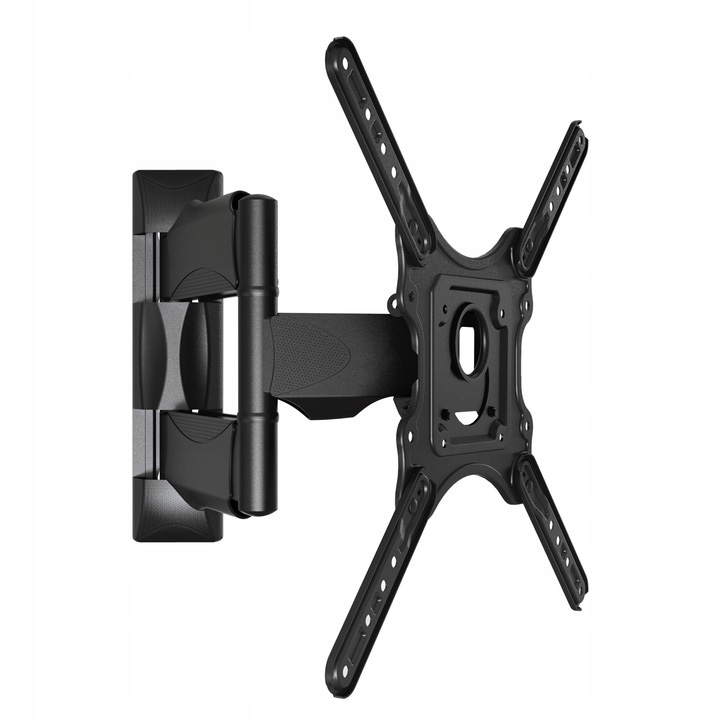

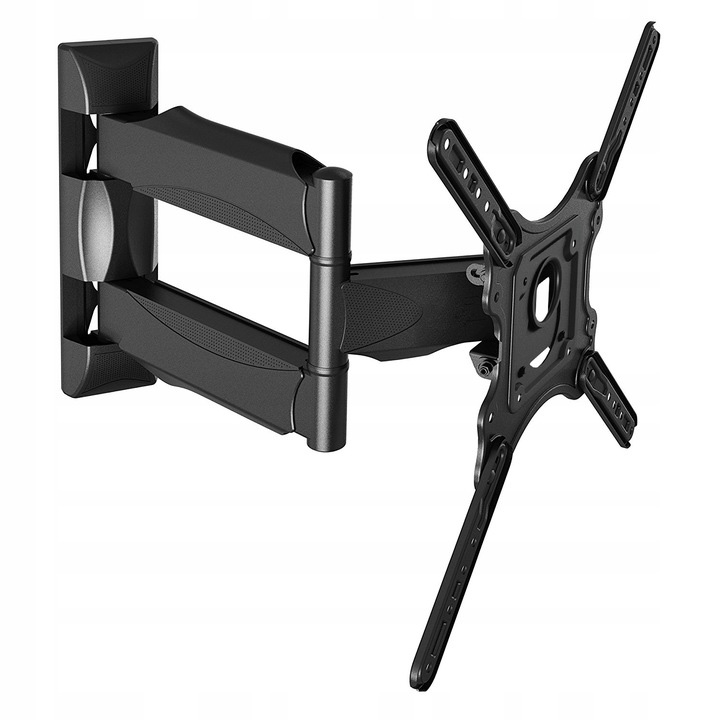

Swivel Mount for 32 '- 55' LCD LED TV

A sturdy rotating bracket for LED LCD TVs
TV size: 32 "- 55"
maximum TV weight: 31.8 kg
VESA max: 400x400 mm
rotation adjustment: 160 °
tilt adjustment: -8 ° / + 5 °
adjustable distance from the wall: 53 ~ 499mm
cable management system

CHARACTERISTIC
designed for 32 "- 55" Plazma LCD LED TVs
universal adjustable flat TV mount weighing up to 31.8 kg
high-quality workmanship with attention to detail
tilt adjustment
swivel arm
short distance from the wall
tilt correction (reduction of assembly errors)
the handle is ISO and TUV GS certified
compliant with the VESA standard
cable management system
a cover that covers the screws
very solid workmanship
available in black

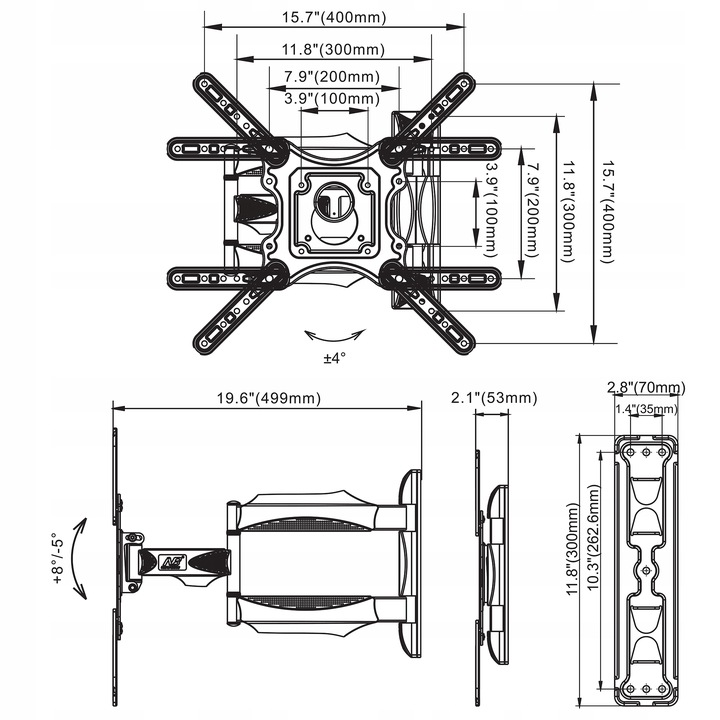

TECHNICAL PARAMETERS
max. lifting capacity 31.8 kg
for 32 "- 55" TVs
rotation adjustment up to 160 °
tilt adjustment in the range of + 8 ° / -5 °
± 4 ° screen tilt correction
adjustable distance from the wall in the range of 53 ~ 499mm
quality of workmanship confirmed by ISO 9001 and TUV GS standards
VESA compatible (mounting hole spacing) standard:
VESA 100 (hole spacing 100mm x 100mm),
VESA 200x100 (hole spacing 200mm x 100mm),
VESA 200 (hole spacing 200mm x 200mm),
VESA 200x300 (hole spacing 200mm x 300mm),
VESA 200x400 (hole spacing 200mm x 400mm),
VESA 300x200 (hole spacing 300mm x 200mm),
VESA 300 (hole spacing 300mm x 300mm),
VESA 400x200 (hole spacing 400mm x 200mm),
VESA 400 (hole spacing 400mm x 400mm),

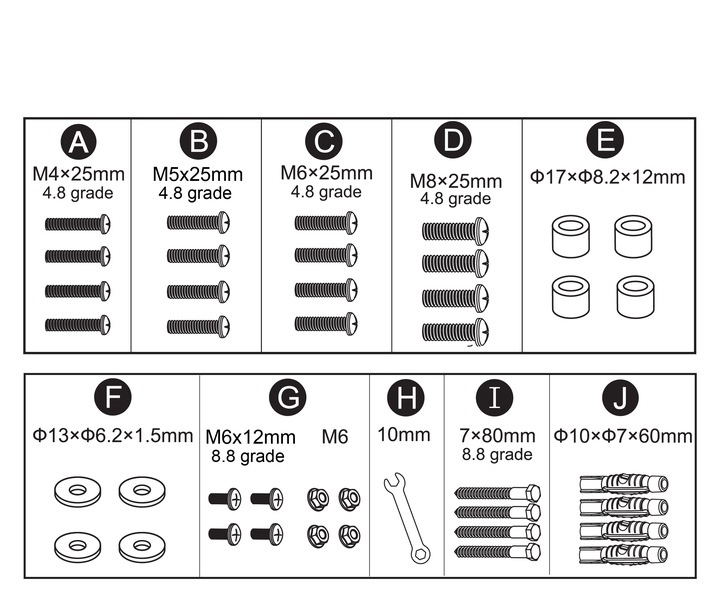

MOUNTING KIT
Screw M4 × 25mm - 4 pcs.
Screw M5 × 25mm - 4 pcs.
Screw M6 × 25mm - 4 pcs.
Screw M8 × 25mm - 4 pcs.
Distance Ø17 × Ø8.2 × 12mm - 4 pcs.
Washer Ø13 × Ø6.2 × 1.5mm - 4 pcs.
Screw M6 × 12mm - 4 pcs.
Nut M6 - 4 pcs.
10mm wrench - 1 pc.
Screw 7 × 80mm - 4 pcs.
Dowel Ø10 × Ø7 × 60mm - 4 pcs

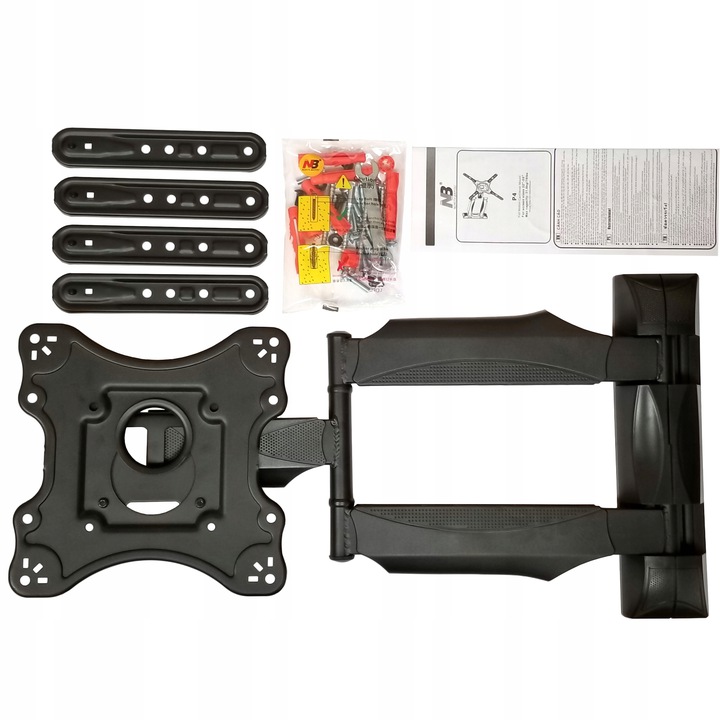

SET COMPOSITION
handle
set of screws *
installation instructions
* standard / universal screws suitable for most televisions are included, if they do not fit, you need to buy the appropriate screws on your own!

How to check if the bracket will fit the TV?

When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the spacing of the mounting holes, the size of the screen itself is indicative. For information on the TV's compliance, see the user manual or the manufacturer's website. You can also check and measure the spacing of the holes yourself.

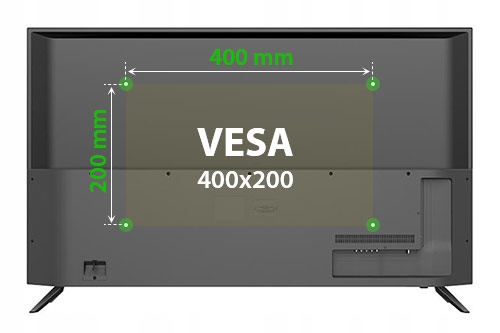

The VESA standard specifies the locations of the four mounting holes on the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter specifies the distance between the holes horizontally (left - right), and the second parameter specifies the distance between the mounting holes vertically (top - bottom).
