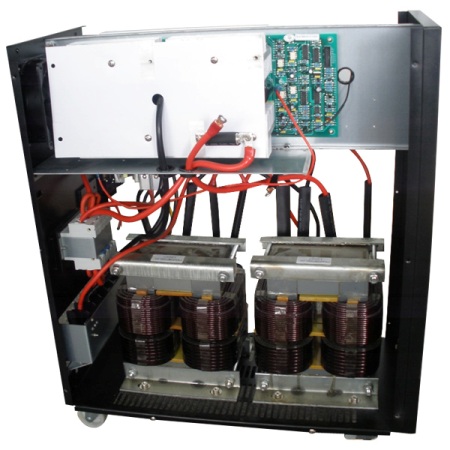

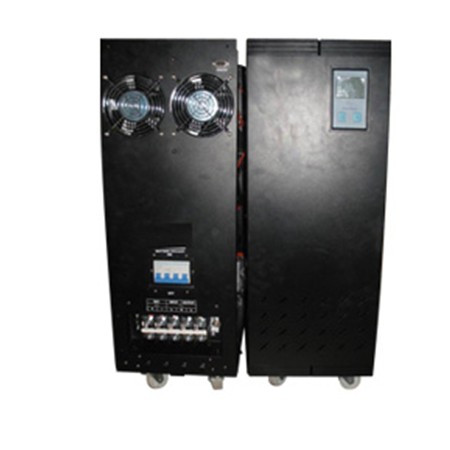

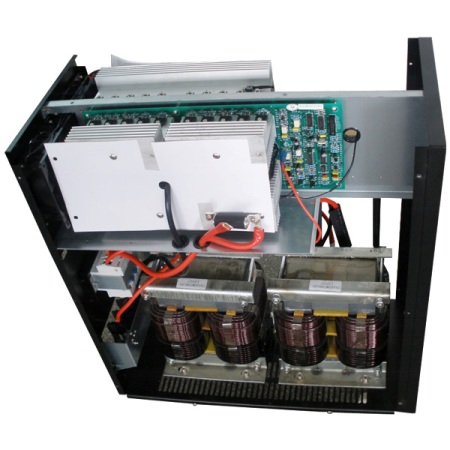

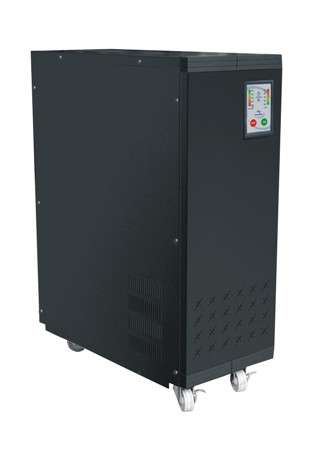

Picture of EP2000 series 5KW-10KW Sinewave  Inverter (LCD)

EP2000 series 5KW-10KW Sinewave Inverter (LCD)

SKU: FS00018856
Reproduction is welcome and allowed for free circulation only.

Application:

Pure sine-wave output,can be usedwith ,differedomesticapplianecTV,refrigerator,fan,airconditioner,induction cooker,micro-wave over etc. Also applied in the field of industrial process controls, battery charging requirements, personal computers, telecommunications, graphics displays, plating and gold recovery industries and wherever required in the commercial, telecoms, mining or industrial markets.Commercial Solar, Recreational Vehicles.

Manual Main Features:

Extremely low return noise and no disturbance to talking quality.
Special charging system design for better protection of battery life.
Short circuit, overload, overload, over voltage and low battery protection.
Superior performance from CPU control technology.
Use-friendly interface, LCD digital display and computer screen display of inverter operation status

Specifications:

Model PT5000W PT6000W PT7500W PT10000W
capacity 5000W 6000W 7500W 10000W
OUTPUT
Output Voltage 5000w:120V/220VAC(+/-10%); 6000w-10000w:220VAC(+/-10%)
Voltage Waveform Sine wave
Crest Factor 3:1
Output Frequency commercial power supply:shared frequency with the commercial , inverstion state: 50/60HZ+/-0.5
Transfer time Typical:5ms (including detection time)
INPUT
Nominal Voltage 5000w: 120V/220VAC(+25%,-35%); 6000-10000w: 220VAC(+25%,-35%)
Input Frequency 47Hz ~ 65Hz, 50/60Hz auto-sensing
Efficiency (Normal mode) >95%
BATTERY
Battery type sealed, maintenance-free Lead-Acid (Recommended)
DC Voltage 96/192vdc
Charging method Smart pulse charging with two charging modes:Quick charging when battery is not fully charged;trickle charging when battery is 90% fully charged
Max.charge current 15-25A(MAX)
Battery Protection Automatic self-test,discharge protection,over-charging protection,smart management system
PROTECTION
over load protection automatically shutdown if overload exceeds 120% of normal value for 1 minutes,automatically resume work if overload comes back to rated load.
over temperature protection at termperature over 90, then turn off automatically
Cooling fan control Auto on / off, controlled by temperature & operation mode
ENVIRONMENTAL & SAFETY
Operating Temperature Up to 1500 meters:0°C to 40 °C (32 °F to 104 °F)
Relative Humidity 5 - 95% non condensing
Operating Altitude 0 ~ 3000 meters
product size (mm) 500*260*455 570*260*750
packing size )mm) 545*345*535 720x480x1030
