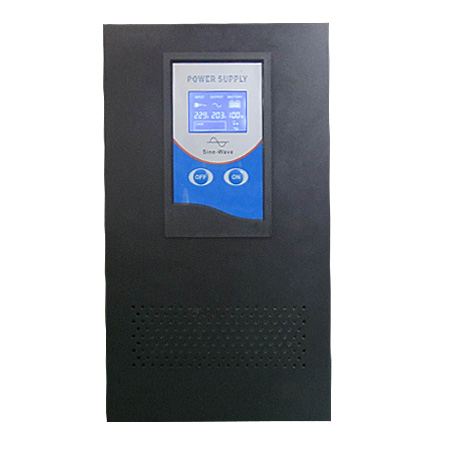

Image de EW2150 Series 1000VA-6000VA Sine wave UPS

EW2150 Series 1000VA-6000VA Sine wave UPS

SKU: FS00018872
Reproduction is welcome and allowed for free circulation only.

Application:

- High quality and availablity of energy adapted to suit specific critical needs
- Covering a vast range of applications.Applied to key devices.
- Communication system.
- Computer network system.
- Some devices need harsh electric power environment.

Manual Main Features:

Accurate pure sine wave output ;strong capacity of different load.
Smart RS232 communication port .
Advanced performance due to the CPU control.
Wide range of power input and accurate output AVR.
Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.
LED/LCD display (optional).
Adapt to various of power net well ,compatible with generator.
UPS start automatically when the main power recover(optional).
Intelligent battery management.

Specifications:


MODEL EW2150 1KM/S EW2150 2KM/S EW2150 3KM/S EW2150 5KS EW2150 6KS
CAPACITY 1KVA /700W 2KVA /1400W 3KVA /2100W 5KVA /3500W 6KVA /4200W
INPUT
Voltage 100/110/120/127/220/230(± 25%) VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 ± 10% Hz (auto sensing)
OUTPUT
AC Voltage Regulation ±10%
Frequency Range 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Sine Wave
BATTERY
Battery Type & Number 12 V/7 AH x 2 12 V/12 AH x 2 12 V/12 AH x 2 12 V/17 AH x 4 12 V/17 AH x 4
Recharge Current Long back up model:max 25A Standard model:max 3A
INDICATORS
LCD/LED Optional
PROTECTION
Overload shut dowm if overload exceeds 120% /normal value for 30 seconds
Short circuit Cut off immediately or input circuit breaker protection
ALARM
Battery back-up Sounding every 4 seconds
Low Battery Sounding every second
Overload Audible alarm
Fault Continuously sounding
PHYSICAL
M Dimension, D X W X H (mm) 375 x 130 x 190 452*192*338(2kva-3kva);500*260*455(5kva-6kva)
M Net Weight (kgs) 12.0 21 25 29.5 33.7
S Dimension, D X W X H (mm) 375 x 130 x 190 452*192*338
S Net Weight (kgs) 9.6 17.0 23.7 27 37.3
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
