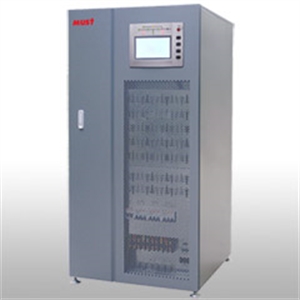

Picture of EH9115 Series 3 Phase Low frequency UPS 10-80KVA

EH9115 Series 3 Phase Low frequency UPS 10-80KVA

SKU: FS00018879
Reproduction is welcome and allowed for free circulation only.

Application:

EH 9115 seriesprovides maximum protection for vital ‘mission-critical' networks, security applications (electro-medical) and industrial applications thanks to its outstanding mechanical and electrical design. The UPS has an extremely outstanding mechanical and electrical design: isolation transformer on the inverter, high short-circuit current and sinusoidal absorption with low THDi.

Manual Main Features:

High accuracy and reliability due to the double DSP control system
low power consumption up to 94%
cold start directly and smart operation for users.
simple to install:capability to install the UPS into any distribution system (neutral not required on rectifier input)
capability of regulating the output voltage (to offset voltage drops down long cable runs)
built-in automatic and manual battery test feature, battery deep discharge protection and temperature compensating charger
back-feed protection: to avoid energy feeding back into the mains supply should a fault occur
reliable, filtered, stabilized and regulated sine wave output (double conversion on-line technology )with filters for atmospheric

disturbance suppression- high reliability, full microprocessor control with no-break static and manual bypasses,extremely high short-circuit

current to ensure compatibility with the most difficult transformer applications (lighting, drives and industrial processes) and an isolation

transformer on the inverter output- maximum reliability and power availability- high level diagnostics: event log with messages, status,

measurements and alarms - available from the built-in LCD in several languages

Specifications:

MODEL EH9115-10K EH9115-20K EH9115-30K EH9115-40K EH9115-60K EH9115-80K
CAPACITY 10KVA/8KW 20KVA/16KW 30KVA/24KW 40KVA/32KW 60KVA/48KW 80KVA/64KW
INPUT
Voltage 380/400/415 Vac±20%,3 Phase +N (3 phase and 4 wire)
Input Frequency 50/60 Hz ±10%
Power Factor >=0.95
phase 3phase
Input voltage protection Electronic Input out of tolerant protection
OUTPUT
AC Voltage Regulation (Batt.Mode) 380/400/415 Vac ±1%,3 Phase +N
Voltage tolerant (balanced load:+/- %1)(unbalanced:+/- %2)(full load:+/-%5)
Voltage regulation time After full load: 25 ms
Frequency Range 50Hz (60Hz special product)
Frequency tolerant (synchron:+/-%2) (free running:+/-%0,2)
Efficiency (100% load) >85% >90%
Harmonic Distortion <=3% THD (Linear Load),<=5% THD(Non Linear Load)
Transfer Time AC to DC Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sine Wave
Crest faktor 3:1
BATTERY
Battery Type & Numbers Maintenance free lead-acid batteries / 12V x 32pcs
charge current 8A
Battery Start Yes, UPS can be started without AC source.
Battery protection Automatic circuit breaker
Battery voltage protection Electronic 3 level alarms
OVERLOAD
Overload protection (>130-%150 load :60 seconds ) (>%150 load :30 seconds)
Short circuit protection Electronic protection
Output voltage protection Electronic out of tolerant protection
PHYSICAL
Dimension, D X W X H (mm) 600x550x1250 780x700x1520
Net Weight (kgs) 200 270 330 360 430 500
OPERATING ENVIRONMENT
Humidity 0% - 90% (NonLCCondensing)
Temperature 0 – 40°C
Overtemperature protection Electronic protection
Noise Level < 58 dBA (At 1 M) < 63 dBA (At 1 M)
Altitude <1000 M Above Sea Level
LED,LCD,Buzzer YES
MANAGEMENT
Remote Control Dry contact, RS232
. All specifications mentioned above are subject to change without prior notice.
