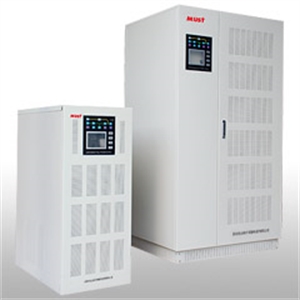

Picture of EH9115 Series 3 Phase Low frequency  UPS  100-160KVA

EH9115 Series 3 Phase Low frequency UPS 100-160KVA

SKU: FS00018880
Reproduction is welcome and allowed for free circulation only.

Application:

High quality and availability of energy adapted to suit specific critical needs,covering a vast range of applications,itprovides maximum protection for vital ‘mission-critical' networks, security applications (electro medical) and industrial applications.

Manual Main Features:

High accuracy and reliability due to the double DSP control system

The working status of UPS is displayed clearly on LCD screen

Designed for industry to make sure the UPS works well under the bad circumstance

With isolated transformer output and can drive the load of motors series directly

Make sure the reliability and safety of the load and system due to the fullprotective function

Coldstart directly and smart operation for users

Advanced network monitor function and support various system

UPS can be easily interconnected owning to the special control technology

Specifications:

MODEL EH9115 100KS EH9115 120KS EH9115 160KS
CAPACITY 100KVA/80KW 120KVA/96KW 160KVA/128KW
INPUT
Voltage 380/400/415 Vac +/-20%(3 phase and 4 wire)
Input range +/ - 20% ( > +/- 20% is available upon request)
Input Frequency 50 / 60 Hz + / - 10%
Efficiency > 93%
Voltage Regulation + / - 1%
Phase 3-Phase Input / 3-Phase Output
OUTPUT
AC Voltage Regulation (Batt. Mode) 380/400/415 Vac +/-1% 380/100/415Vac+/-3% ( 3 phase and 4 wire)
Frequency Range (Synchronized Range) Simulaneoously with line input (Commercial power status)
Power Factor 0.8
Harmonic Distortion <=2 % THD (Linear Load)
Transfer Time AC to DC Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sine Wave
BATTERY
Battery Type & Numbers Maintenance free lead-acid batteries / 12V x 32pcs
Charge
Current Adc (Selectable)
6-20A
Battery Start Yes, UPS can be started without AC source.
INDICATORS
LCD Panel UPS status, Load level, Battery level, Input/Output voltage, and Fault
conditions
130% overload 10 minutes
130 - 150% overload 60 seconds
> 150% overload 30 seconds
Efficiency (100% Load) 95%
PHYSICAL
Dimension, D X W X H (mm) 1000*900*1680
Net Weight (kgs) 840 940 1010
OPERATING ENVIRONMENT
Humidity 0% - 90% (NonLCCondensing)
Temperature 0 – 40°C
Noise Level < 65 dBA (At 1 M)
Altitude <1500 M Above Sea Level
Crest ratio 3:1
Short Circuit Pretection YES
Lightning / EMC Filter MOV / Input&Output
Galvanic Isolation Input&Output true Galvanic isolation
LED,LCD,Buzzer YES
MANAGEMENT
Remote Control /
Communication Interface
Dry contact, True RS232 port
