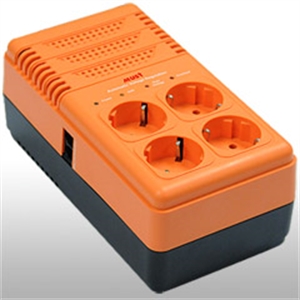

Image de EVS Series 500 800 1200VA AVR

EVS Series 500 800 1200VA AVR

SKU: FS00018881
Reproduction is welcome and allowed for free circulation only.

Application:

High quality and availability of energy adapted to suit specific critical needs,covering a vast range of applications.

Typical Application:

Home PCs ,Workstations,Audio/Video Equipment(TVs,DVD players,Sound systems),Entertainment systems, Other electronic equipments, Small electric domestics.

Manual Main Features:

Automatic Voltage Regulator

Automatically changes and corrects the output voltage, carefully following the input voltage

Visual indicators using 4 LEDS(Power/AVR/Surg/Overload)

Provides the user with the AVR functions status

Protects telephone,Internet,DSL,and Fax/Modem

120VAC or 220VAC(depending on the model)

6 NEMA standard outlets

Specifications:

MODEL EVS-500 EVS-800 EVS-1200
CAPACITY 500VA 800VA 1200VA
INPUT
Voltage Nominal Voltage 110/115/120VAC or 220/230/240 VAC
Acceptable Voltage Range 80VAC~144VAC or 161VAC~288VAC(-30%,+25%)
Phase 1 Phase 2 Wires
Frequency 50Hz or 60Hz
OUTPUT
Output Voltage Range 103VAC~127VAC or 207VAC~253VAC(±-10%)
Frequency 50Hz or 60Hz
PROTECTION
Network Surge Suppression RJ-11
Overload Protection Manual Reset Circuit Switch
Short circuit Protection Manual Reset Circuit Switch
INDICATORS
Power LED On/Off Green lighting
Output Cut Off LED Red lighting
PHYSICAL
Dimension, D X W X H (mm) (@ vertically stand) 215*115*90mm
Net Weight (kgs) 1.8 2.0 2.55
OUTLETS
AVR 6 Nema / 4 Schuko
OPERATING ENVIRONMENT
Humidity 0-95%(non-condensing)
Operating Temperature 0~40°C
Noise Level Less than 40dB at 1M
. Different specifications required are available.
. All specifications mentioned above are subject to change without prior notice.
