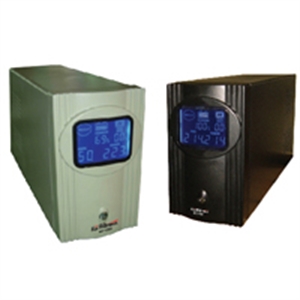

Picture of Line Interactive UPS MC 500-1200

Line Interactive UPS MC 500-1200

SKU: FS00018897
Reproduction is welcome and allowed for free circulation only.

Key Features��ide input voltage window
��
Boost and Buck AVR

��
Protection for short circuit, overload and battery low voltage

��
LED indication and audible alarm function

��
ntelligent battery management

��
AUTO start function is option

��
Automatic battery charging in UPS off mode ( Option)

��
Cold start function

��
RJ11/RJ45 is option

��
DB9 is option

Technical Specifications

ITEM

MODEL

MC 500

MC 600

MC 800

MC 1000

MC 1200

MC 1500

Capacity

Output power

500VA/300W

600VA/360W

800VA/480W

1000VA/600W

1200VA/720W

1500VA/900W

Input

Voltage range

165~275Vac��5V / 140-280V ��5V or 70 - 140V

Frequency range

50 or 60 �� 2.5Hz

Output

Voltage

220V or 110V �� 10%(battery mode)

Frequency

50 or60 �� 6Hz(battery mode)

Transfer time

Max:10Ms

Waveform

Simulated sine wave

Battery

Type

Sealed lead acid, maintenance free

DC voltage

12VDC

Battery number

1*12V/7AH

1*12VDC/9AH

2*12V/7AH

2*12V/7AH

2*12V/7AH

Protection point of low Voltage

9.5VDC-12VDC

Standby time

Full load >3min,half load >8min

Recharge

After fully discharged, charge 8 hours to 90% capacity

Protecting

Output overload

Fuse & current limited when overloaded

Battery low voltage

Automatically lock out the machine so as to protect the Battery from over discharging

Short circuit

Fuse & current limited

Restart

Auto restart when AC recovery.

Alarm

Battery back-up

Sounding every 4 seconds

Battery low

Sounding every 1 second

Overload

Shutdown at once

Indicator

LED

LED indicator for line on, battery back-up, UPS cut-off

Surge Protection

320 Joules, RJ11, RJ45

Communication

RS232

Package size

L* W* H(mm),2PCS

385*315*230

385*315*230

385*315*230

490*465*300

490*465*300

��

Package Weight

Kg, 2PCS

12 Kg

13 Kg

15 Kg

22 Kg

23Kg

��
