Image de Online-Interactive UPS TPSW500S-2000S

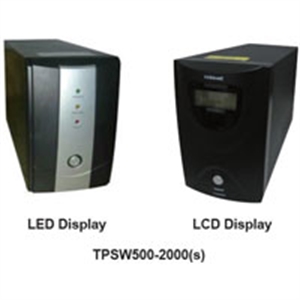

Online-Interactive UPS TPSW500S-2000S

SKU: FS00018903
Reproduction is welcome and allowed for free circulation only.

Key Features
��
Smart double CPU control

��
Low frequency Line interactive design

��
Pure sine wave output THD less than 3%

��
Automatic self-detection on startup

��
Adjustable output voltage

��
Unattended management function

��
Manual silence/alarm transfer function

��
LED display for load and battery rate, Line or
battery mode and fault

��
AVR function

��Provide lightning, surge, and overload and short-circuit protection.

��
Cold start function (DC power on).

��Auto transfer, the typical transfer time 5Ms.

��With Rs232 and software.Technical Specifications

Model

TPSW500/TPSW500S

TPSW1000/TPSW1000S

TPSW1500/TPSW1500S

TPSW2000/TPSW2000S

Maximum Output Power(W)

500VA

1000VA

1500VA

2KVA

300W

600W

900W

1200W

Input

Voltage

140-260V or 70-130V

Frequency

45~65Hz(automatic follow)

Output

Voltage

110Vac��10% or 110Vac��10%

Frequency

50/60��0.5HZ

Output Waveform

pure sine wave

General Protection

Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage

internal Battery of TPSW500-2K

1*7.2AH/12VDC

2*7.2AH/12VDC

2*9AH/12VDC

2*9AH/12VDC

DC voltage of TPSW500S-2KS

12/24VDC

24VDC

charger Current of TPSW500-2KS

15AMP

Transfer Time(ms)

typical 5MS,Max 10MS

Overload Protection

shut down while over 120%, 10 secs less than 120%. Auto resume

Communication Interface

RS-232 and communication software

Surge protection

yes

LED Display

load/battery rate, line/battery mode, fault

LCD Display

Optional,input & output VAC, HZ, Battery Capacity

product size

356*123*189

356*123*189

356*123*189

356*123*189

Weight (Standard /Long time) (KG)

7/6KG

7.5/6.5KG

11/10KG

20/25KG

Remark

TPSW500-TPSW200,standard type, TSPW500S-2000S- Long backup type
