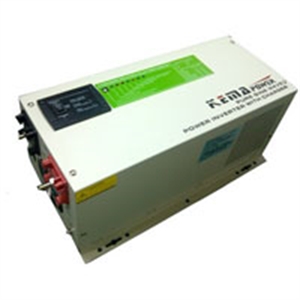

Image de Grid Hybrid Off Grid Power InverterG-PSW 1KW-6KW

Grid Hybrid Off Grid Power InverterG-PSW 1KW-6KW

SKU: FS00018920
Reproduction is welcome and allowed for free circulation only.


Key Features
��low frequency pure sine wave Grid Hybrid Off Grid Power Inverter

��2 in 1 Off Grid design , Inverter + Power Charger

��Selectable Grid power First or Solar Power First (battery power First )

��Transfer Time 10ms. Computer will not shut off when Mains off suddently.

��digital control Three stage charger, improve battery life

��with Battery Selector for charge of diffreent battery

��Power saver Function ( Stand by)

��High Power Factor0.9-1,

�� Low idle current to reduce energy consumption

��low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC

��big charge current,35A-75Amp for different mode

��Back-Feed Protection

�� Full protection,short circuit,Overload,over Temp., Battery low/high Protection

�� Fault recovery

��LED display and alarm��

��remove control solution

��Rs232 communication function optional for LED Type

��SNMP Net Agent function optional for LED type

�� Remove control cable optional

��LCD Display is optional


Technical Specifications

Item

Model

G-PSW-1K

G-PSW 2K

G-PSW3K

G-PSW4K

G-PSW5K

G-PSW-6K

Capacity

VA / Watts

1KVA/1KW

2KVA/2KW

3KVA/3KW

4KVA/4KW

5KVA/5KW

6KVA/6KW

Surge rating (10s)

3KVA

6KVA

9KVA

12KVA

15KVA

18KVA

Efficiency

>95% under AC mode,>88% under DC mode

Power Factor

0.9~1.0

Input

Normal voltage

220VAC/110V

220V Voltage range

184-270V+-4%

110V Voltage range

85-150V+-4%

Frequency range

50Hz/60HZ -3 +5 Hz (Auto detection)

Output

Voltage (V)

220V/110V+-10%

Frequency (Hz)

50Hz/60HZ +-0.3 Hz

Wave form

Pure Sine Wave

bypass without Battery

yes

UPS Mode

Grid power first. Battery power ( Solar Power) as backup

Solar inverter Mode

Solar Power First, Grid power as Backup

Transfer Time

less than 10 ms (typical)

Overload capacity

DC Mode(SMPS load)

(110% (125% Load>150% ��10% for 20s

AC Mode(SMPS load)

by breaker

Protection

Overload

Current limit under DC mode ,Breaker under AC mode

Battery Protection

Over charge, Over discharge,DC Breaker, Alarm

Over Temperature

Variable speed fan, LED lighting and alarm

Back-Feed Protection

yes

short Circuit.

by breaker.Faul after 10 secs

Battery/Charger

AC input

95-127V, 194(164)--243V

DC input

12VDC /24VDC or 48VDC,external Battery

Charge Voltage

for 12VDC system, Boost voltage 14-15.5V selectable for different Battery. The others are multiple

Charger Current

12-75AMP difference for different mode

Charge Manage

digital control, Three stage charger

Display

LED

Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on

Audible Alarm

Battery Low, Battery High, Over Temp. Over load,Fail,Over charge

Optional

RS232 Communication,SNMP Net Agent, Remote Control

Power Saver

below 25W when enabled. loading checking 2 time/sec.

Working Environment

Temperature

0��C to 40��C

Noise

60dB max

Humidity

5% to 95%

Package

Carton

Carton

Carton

Carton

Carton

Carton

Package Size

WxDxH (mm)

590*335*320

590*335*320

590*335*320

765*340*320

765*340*320

765*340*320

Gross Weight

KG

20

22

26

38

48

48

ATTENTION

the inverter do not build in solar charger controller.
