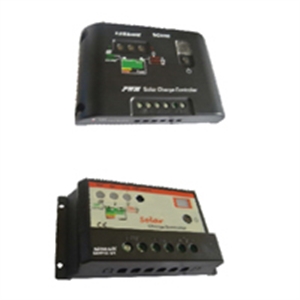

Solar Charger Controller SCH10

SKU: FS00018928
Reproduction is welcome and allowed for free circulation only.

Key Features

��Fully digitized microprocessorcontrol ,useSCM
��Provide longerbattery lifeand improved system performance
��Series PWMchargemode&State of Charge(SOC) battery regulation
��4stagescharging :Equalization,PWM,Boost Float
��External temperaturecompensation sensor
��LED displayfor charging, Battery andDC loadrunning stateand fault
��Full circuit protection,
��Overloadand shortcircuit protection and resume when released
��Over dischargeprotection and resume
��Over chargeprotection
��Reverse polarity protection forsolarpanel ,battery andDC load.
��Reverse currentat night
��Lighting protection
��12V or 24VDC automatic work
��Optional loadcontrolfunctions:TimeControl,
��Light Controland Timer set usefor solarstreet light
��SCH10,SCH10-ST twoshape optional

Technical Specifications
ITEMMODELSCH10-5ST SCH10-5/SCH10-ST SCH10/
Ratedchargecurrent5A10A
Rated loadcurrent5A10A
System voltage12/24V AUTO work
Protection Over load125% for60sec.150% for5sec.for load and solar panel
ShortcircuitOver 300%, shut offat noce.for load and solar panel
Over voltage17V / 2*17V,for load
Low voltage10.5VDC/21VDC
Reverse polarityprotection forsolar panel ,battery andDCload.
Reverse currentyes.at night
Lighting protectionyes
Staticcurrent�� 6mA
VoltagedropChargingloop�� 0.26V
Dischargeloop�� 0.15V
Charging
voltage
Boostcharging14.6V; 29.2V for 30Mins.Only forBattery wasoverdischarged.
Equalizing charging14.4V; 2*14.4V for30mins
Floatcharge13.6V; 2*13.6V
Charging recovery13.2V; 2*13.2V
Temperaturecompensation-5mv/��/2V
Battery low12.0V�� 2*12V
Loaddisconnect voltage11.1V- 2*11.1V
��13.1V��2*13.1V
Over dischargeforced recovery12.5V��25.0V�� ( recovery by switch )
ChargingcontrolmodeSeries PWMcharge mode &State of Charge(SOC),Automatic compensation
Running temperatureIndustrygrade ��-35�� to +55�棻Commercial Grade: -5��to +50��
TropicalizationPCB was spraycover.Terminals corrosion protected
Protection classIP22
Case materialABS
LED displayCharging, Battery and DC load running state and fault
TerminalsizeMax6 Sqmm wires
OptionalfunctionsTime+light Control(RC),Timer set(RC-M),usefor solar street light
Productsize(mm)133*19.9*26.9133*19.9*26.9
Carton size(mm)510*310*210mm/50PCS510*310*210mm/50PCS
Carton weight(kg)1111
