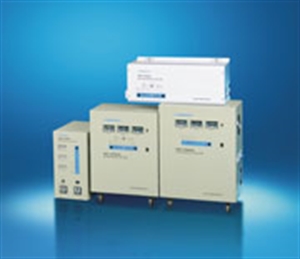

Picture of HBC-dfP(hbc-p)microcomputer intelligent square wave inverter

HBC-dfP(hbc-p)microcomputer intelligent square wave inverter

SKU: FS00019625
Reproduction is welcome and allowed for free circulation only.

Product introduction(HBC-dfP(hbc-p)microcomputer intelligent square wave inverter)
HBC-DFP series microcomputer square wave inverter is one of the most advanced DC-AC inverters, uses microcomputer control, humane design, highly automated. Inside is designed with high power synchronous rectification charger, charging under the voltage and current limiting mode, keeps the battery always have sufficient power. It charges the battery when connected with power grid or power generator, and supply power to AC load through inverter at the same time; When the AC power is interrupted, the inverter automatically convert AC to DC battery power to the load. It is simply, stable, no noise, no pollution etc.
Application(HBC-dfP(hbc-p)microcomputer intelligent square wave inverter)
Supply emergency power to:
vehicle,vessel,solar power,
wind power,
areas without electricity,
and power tools,fluorescent,
TV,microwave,computers,
and other electrical appliances
Performance (HBC-dfP(hbc-p)microcomputer intelligent square wave inverter)
Input AC Voltage220V±10%
Output AC Voltage220V±10%(effective value)
Output Frequency50Hz±0.5%
Output Waveformmodified sine wave
distortion rate of waveform<5%
energy conversion rate≥85%
switch method≤15ms
emergency back-up timedepends on the capacity of battery and power of load, formula is as follows
invert back-up tim(h)=battery capacity(Ah)×0.85(η)/Discharge current(A)
Batteryexternal battery
Model & Spec (HBC-dfP(hbc-p)microcomputer intelligent square wave inverter)
Modelspec.DC Voltage(V)Outline size(cm)Weight(kg)
desk typeHBC-DFP(no meter)500VA12V/24V/36V/48V60X26X2414
1000VA12V/24V/36V/48V60X26X2429
1500VA24V/36V/48V60X26X2432
2000VA24V/36V/48V70X28X2445
3000VA24V/36V/48V70X28X2451
4000VA24V/36V/48V80X30X2458
5000VA24V/36V/48V80X30X2464
HBC-DFP(LCD screen)500VA12V/24V/36V/48V60X26X2414
1000VA12V/24V/36V/48V60X26X2429
1500VA24V/36V/48V60X26X2432
2000VA24V/36V/48V70X28X2445
3000VA24V/36V/48V70X28X2451
4000VA24V/36V/48V80X30X2458
5000VA24V/36V/48V80X30X2464
floor typeHBC-DFP(Needle metern)500VA12V/24V/36V/48V28.5X14X3514
1000VA12V/24V/36V/48V37X21.5X4225
1500VA24V/36V/48V37X21.5X4233
2000VA24V/36V/48V40.5X26X5549
3000VA24V/36V/48V40.5X26X5551
4000VA24V/36V/48V44X26X6060
5000VA24V/36V/48V44X26X6062
HBC-DFP(LCD screen)500VA12V/24V/36V/48V28.5X14X3514
1000VA12V/24V/36V/48V37X21.5X4225
1500VA24V/36V/48V37X21.5X4233
2000VA24V/36V/48V40.5X26X5549
3000VA24V/36V/48V40.5X26X5551
4000VA24V/36V/48V44X26X6060
5000VA24V/36V/48V44X26X6062

Note: Built-in battery models and special voltage requirements, can be customized according to the actual situation, will be quoted separately.
