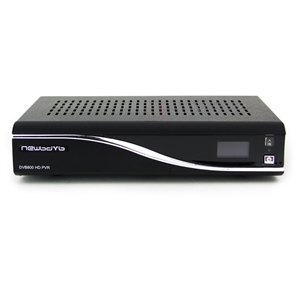

Picture of DVB-S set top boxTV Receiver

DVB-S set top boxTV Receiver

SKU: FS00041213
DVB-S set top boxTV Receiver
Reproduction is welcome and allowed for free circulation only.


DBS-Tuner mit DVB-S2: Frequency Range 950 ~ 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ~ 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 - 31 Mbaud/s (8PSK) , 10 - 30 Mbaud/s (QPSK) Video decoder: Video Compression MPEG-2 and MPEG-1 compatible, H.264
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink Ausgang Video: Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware Ethernet: 10/100 MBit compatible interface
Function: Update of Firmware Analoge modem: analoge modem for Internet connection SATA Interface: For use either as internal HDD 2.5" or eSATAor internal 2.5" HDD USB 2 x USB 2.0 Host on the back LNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical 11,5V at 400mA
LNB Voltage horizontal 17,3V at 400mA Count of active satellite position: DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control) Power consumption: < 15W at 12V External PSU Input: 100-240V AC / 50-60Hz / 0,6A

- 300 MHz MIPS Processor
- Linux Operating System
- OLED - Display
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S, optional: DVB-C, DVB-T
- 2 x Smartcard-Reader (Dreamcrypt )
- V.24/RS232 Interface
- 10/100Mbit Ethernet Interface
- 3 x USB 2.0 (1 built-in)
- S/PDIF Interface for digital bit stream out (AC-3)
- 1 x Scart (RGB, FBAS or S-Video)
- DVI
- 64 MByte Flash
- 128 MByte RAM
- SATA/eSATA
- Use either as internal SATA HDD 2.5" or to use for external eSATA
- Unlimited channel lists for TV/Radio
- Channel-change time < 1 second
- Automatic service scan
- Directly bouquet-lists
- EPG (electronic program guide)
- Videotext Decoder
- Multiple LNB-Switching control (supports DiSEqC)
- OSD in many languages and skin-support
- Analog modem
- Extern 12V power supply
