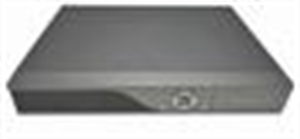

Image de H.264 8CH Economic DVR FJ-7709AV

H.264 8CH Economic DVR FJ-7709AV

SKU: FS00041387
H.264 8CH Economic DVR FJ-7709AV
Reproduction is welcome and allowed for free circulation only.

  • H.264 8CH Economic DVR FJ-7709AV

    8CH H. 264 DVR 8CH audio CCTV camera systems
    Camera systems, CCTV systems, DVR systems, systems camera, 8CH DVR, H. 264 DVR, 8CH audio
    1. Support 2 CH Full D1 and 6CH Full CIF realtime recording resolution
    2. Suuply our own free DDNS, no longer to register domain name
    3. Support Multiple channel playback at the same time(Support 8CH playback simultaneously)
    4. Support Network function: One IE browser centralized monitoring and CMS Software for multiple DVR (up to 255 DVR simultaneously)
    5. Support Mobile phone Remote Viewing: Symbian S60 V3/V5; Windows Mobile; Android; iPhone; Blackberry;

    Video Compression FormatH. 264
    Video SystemNTSC / PAL
    GUI OSDYES
    Video Input(BNC)8CH BNC input(composite video signal 1Vp-p 75Ω BNC)
    Video Output(BNC)1CH BNC output
    Audio Input/Output2CH audio input, 1CH audio output(RCA)
    Maximum Recording Rate
    (2CH D1 and 6CH CIF real time)
    D1: NTSC: 704 x 480 pixels with 60 IPS
    PAL: 704 x 576 pixels with 50 IPS
    HD1: NTSC: 704 x 240 pixels with 60 IPS
    PAL: 704 x 288 pixels with 50 IPS
    CIF: NTSC: 352 x 240 pixels with 240 IPS
    PAL: 352 x 288 pixels with 200IPS
    QCIF: NTSC: 176 x 120 pixels with 240 IPS
    PAL: 176x 144 pixels with 200IPS
    Image Quality SettingSupper Best, Well, Good, Medium, Normal and Bad
    Hard Disk StorageSupport 2 SATA HDD, Max Capacity: 2TB
    Alarm Input/Output (optional)4CH input, 1CH output, with Alarm— DVR-9108LVS)
    Multiplex OperationLive display/record/playback/backup/network transmit
    Recording ModeManual/Timer/Motion/Alarm
    Playback ModeMultiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set.
    Backup DeviceUSB flash disk/USB HDD/Network/USB DVD -RW
    Pre-alarm RecordingRecording for 10 seconds before alarming
    Network ProtocolTCP/IP, PPPOE, DDNS, FTP, UPNP, ARSP and NTP
    Ethernet remote viewSupport remote surveillance up to 10 users simultaneously
    CMS softwareYES
    Mobile phone ViewYES
    VGA InterfaceYES
    Log record functionYES
    Image TourYES
    IR Remote controlYES
    Video Loss DetectionYES
    Video AdjustableHue/Saturation /Contrast /Brightness adjust
    PTZ ControlYES, built-in RS-485 port
    USB MouseYES
    Power SourceDC 12V
    Key Lock(Password Protection)YES
    Power-down recovery functionYES
    Size(mm)325(W) x 52(H) x230(D)
