Image de 8CH H.264 DVR 1TB 6 Outdoor Camera CCTV Security System

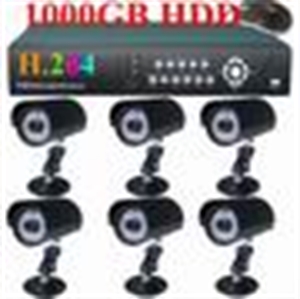

8CH H.264 DVR 1TB 6 Outdoor Camera CCTV Security System

SKU: FS00041393
8CH H.264 DVR 1TB 6 Outdoor Camera CCTV Security System
Reproduction is welcome and allowed for free circulation only.

  • 1.H.264 8-CH Stand Alone DVR With 1000G HDD
    2.6X 1/4 Sharp CCD 420TVLine IR outdoor camera
    3.6X DC12V 1A power supply ( For USA/UK/EURO/AU)
    4.6X 20M(60FT) power/vido all in one cable

    Video Compression

    H.264

    Video System

    NTSC / PAL

    Operation System

    Windows / Linux

    Video Input / Output

    BNC 8-channel inputs / 1-channel outputs

    Audio Compression

    8kHz*16bit ADPCM

    Audio Input / Output

    RCA 8-channel inputs / 1-channel outputs

    Display Frame Rate

    PAL: 200 fps / NTSC: 240 fps

    Playback Resolution

    PAL: CIF(352X288), HD1(704X288), D1(704X576)

    NTSC: CIF(352X240), HD1(704X240), D1(704X480)

    Total Recording Frame Rate

    PAL: 200fps@CIF

    NTSC: 240fps@CIF

    Recording Mode

    Always / schedule / motion detection / sensor triggered

    Recording Pack Time

    15/30/45/60mins selectable

    HDD Interface

    Support SATA HDD & USB disk

    Ethernet

    RJ45, 10M/100M

    Network Protocol

    Support TCP/IP, UDP, DHCP, DNNS, PPPoE

    Network Function

    Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely

    USB2.00

    USB mouse, USB disk (backup, upgrade)

    Playback Mode

    Normal play, fast forward, fast rewind, frame by frame

    Backup

    Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network

    PTZ Control

    Built-in RS485, support PELCO-P & PELCO-D

    Alarm Mode

    Motion Detection, Sensor triggered, video loss, HDD error, HDD full

    Senor & Alarm I/OO

    8 sensor inputs / 1 alarm output

    Power Supply

    DC 12V/5A (power adaptor included)

    Power Consumption

    10~15W

    Working Temperature

    -10to +40 degree celsius

    Working Humidity

    10% to 90%

    CCD 24 IR Day/Night Security camera

    Image Sensor

    1/4 Sharp Color CCD

    Effective Pixels

    PAL:512(H)X582(V) NTSC:512(H)X492(V)

    Signal System

    PAL/NTSC

    Horizontal Resolution

    420TV Lines

    Minumum Illumination

    0Lux(Infrared Lamps Turn on)

    LED

    24PCS

    S/N Ratio

    More than 48db

    Shutter Speed

    1/50(1/60)-1/100,000sec

    Video Output

    1.0Vp-p, 75

    Power Consumption

    DC12V, 120mA

    Built-Lens

    6mm/F1.6

    Infraed Wave Length

    850nm

    Infraed Lamps

    80FT

    Infraed Lamps Irradiation Distance

    Night/Day Opening/Turn off

    Video Compression

    H.264

    Video System

    NTSC / PAL

    Operation System

    Windows / Linux

    Video Input / Output

    BNC 8-channel inputs / 1-channel outputs

    Audio Compression

    8kHz*16bit ADPCM

    Audio Input / Output

    RCA 8-channel inputs / 1-channel outputs

    Display Frame Rate

    PAL: 200 fps / NTSC: 240 fps

    Playback Resolution

    PAL: CIF(352X288), HD1(704X288), D1(704X576)

    NTSC: CIF(352X240), HD1(704X240), D1(704X480)

    Total Recording Frame Rate

    PAL: 200fps@CIF

    NTSC: 240fps@CIF

    Recording Mode

    Always / schedule / motion detection / sensor triggered

    Recording Pack Time

    15/30/45/60mins selectable

    HDD Interface

    Support SATA HDD & USB disk

    Ethernet

    RJ45, 10M/100M

    Network Protocol

    Support TCP/IP, UDP, DHCP, DNNS, PPPoE

    Network Function

    Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely

    USB2.00

    USB mouse, USB disk (backup, upgrade)

    Playback Mode

    Normal play, fast forward, fast rewind, frame by frame

    Backup

    Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network

    PTZ Control

    Built-in RS485, support PELCO-P & PELCO-D

    Alarm Mode

    Motion Detection, Sensor triggered, video loss, HDD error, HDD full

    Senor & Alarm I/OO

    8 sensor inputs / 1 alarm output

    Power Supply

    DC 12V/5A (power adaptor included)

    Power Consumption

    10~15W

    Working Temperature

    -10to +40 degree celsius

    Working Humidity

    10% to 90%
