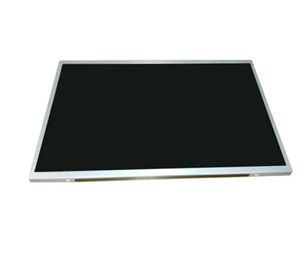

Picture of 18.5 inch New Replacement LCD Screen for Laptop LED

18.5 inch New Replacement LCD Screen for Laptop LED

SKU: FS9103731
Mechanical Details Pixel Features : Resolution 1366(RGB)×768, WXGA Dot Pitch(mm) 0.100×0.300 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.300×0.300 (H×V) [84PPI] Mechanical Size : Active Area(mm) 409.8(H) × 230.4(V)
Reproduction is welcome and allowed for free circulation only.


18.5 inch New Replacement LCD Screen for Laptop LED
Mechanical Details
Pixel Features : Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.100×0.300 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.300×0.300 (H×V) [84PPI]
Mechanical Size : Active Area(mm)
409.8(H) × 230.4(V)
Bezel Area(mm)
413.4(H) × 234.0(V)
Outline Dim.(mm)
430.4(H) × 254.6(V)
Depth(mm)
7.7/11.4 (Typ./Max.)
Outline Features : Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting : Without
Other Spec : Weight
1.31Kgs (Typ.)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Optical Details
Basic Information : Luminance(cd/m²)
200 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
45/45/25/40 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
1.5/3.5 (Typ.)(Tr/Td)
Color Performance : White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)

Backlight Features : Type
WLED
Quantity
14S2P
Position
Edge light type (Right side)
Replacement
-
Shape
2 strings
Life Time
30K(Min.) (Hours)
Lamp Electrical : Voltage Supply
42.7/46.2V
Current Supply
49mA (Typ.)
Consumption
4.19/5.45W (Typ./Max.)
Interface Features : Position

Type
Connector
Interface Detail : Brand
Model
Pitch
Pins
Quantity
Pin Configuration
E&T
3707K-Q06N-00R
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
Key attributes
Industry-specific attributes
Type
TFT
Display Size
18.5inch
Lead time
Quantity (pieces) 1 - 10 > 10
Lead time (days) 15 To be negotiated
