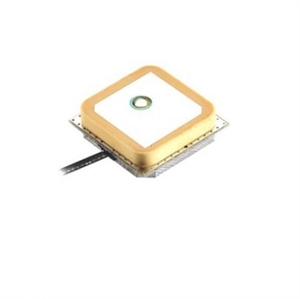

GPS/GLONASS Build-In Antenna

SKU: FS00034409

Reproduction is welcome and allowed for free circulation only.

(i)Dielectric Antenna
Frequency(MHz):1575/1602
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz): ±5
Impedance(Ω): 50
Peak Gain>3dBi Based on 7cm×7cm ground plane
Gain Coverage>-4dBi at –90'<0<+90'(over 75% Volume)
Polarization: RHCP
(ii)LNA/Filter
LNA Gain (Without cable) (dBi):28Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Minf0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V): 2.7/3.0/3.3/5.0/3.0to 5.0etc.
DC Current(mA):11Max
(iii)Mechanical
Weight(gram)<110
Size(mm): 25X25X2
Cable Length(cm): 5-20.
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Magnetic base
Housing :Black
(iv)Environmental
Working Temp:-40'C~+85'C
Storage Temp:-45'C~+100'C
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
