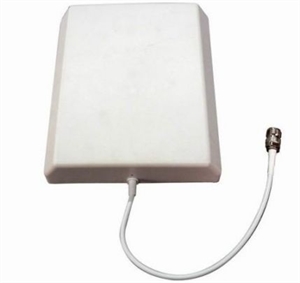

Product Name	1800-2600MHZ panel antenna
Description	GA-LTE-1800-2600-7: The antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance ,high gain ,broad band ,big F/B ratio, strong structure ,own the good ability of antihunting , waterproof and anticorrosion; Small size ,easy installation ,the directional diagram will be unacted whether install on iron tower or roof.
Electric Specification
Model NO	GA-LTE-1800-2600-7
Frequency Range-MHz	1800-2600
Bandwidth-MHz	800
Gain-dBi	7
HorizontalBear width-°	65°
VerticalBear width-°	75
VSWR	≤1.5
InputImpedance -Ω	50
Polarization	vertical
MaximumPower -W	50
Connector	N female
Mechanical Specifications
Dimensions-mm	138*118*41
Weight-kg	0.3
