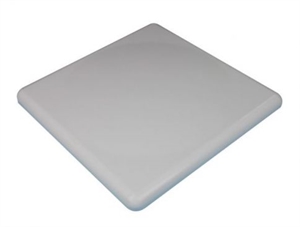

Image de 3400-3600MHz 15DBi panel antenna

3400-3600MHz 15DBi panel antenna

SKU: FS00034441
3400-3600MHz 15DBi panel antenna
Soyez le premier à commenter ce produit
Reproduction is welcome and allowed for free circulation only.


Product Name

 3400-3600MHz dual-polarization panel antenna
Description GA-DF(3400-3600)-15-42: The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
Electric Specification
Model NO GA-DF(3400-3600)-15-42
Frequency Range-MHz 3400-3600
Bandwidth MHz 200
Gain-dBi 15
HorizontalBear width ° 42
VerticalBear width ° 40
F/B Ratio ≥20
VSWR ≤1.7
InputImpedance -Ω 50
Polarization Vertical and horizontal
MaximumPower -W 20
Connector 2XN or SMA
Mechanical Specifications
Dimensions-mm 305X305X30
Weight-kg 0.47
