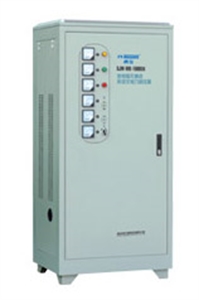

CWY(CVT)series high-availability anti-interference constant voltage transformer

SKU: FS00019569

Reproduction is welcome and allowed for free circulation only.

General(CWY(CVT)series high-availability anti-interference constant voltage transformer)

With features of isolation, anti-interference, little waveform distortion, wide range of voltage stabilization,automatic
protection against short circuit, rapid response, long life, etc, CWY(CVT) series high- availability anti -interference
constant voltage transformer is a safe and reliable product provided for precious and precise equipment.

Application(CWY(CVT)series high-availability anti-interference constant voltage transformer)

For computer, test equipment, lighting system, safety alarming system,communication system, medical equipment,
duplicator, family cinema equipment, industry automatic equipment, numeral control machine tool, photographic
processing equipment, office equipment, etc.

Performance(CWY(CVT)series high-availability anti-interference constant voltage transformer)

lnput voltage	Single-phase 120V-300V	Output voltage	220V.accuracy±7%
lnput voltage	Single-phase-160V-264V	Output voltage	220V.accuracy±7%
lnput voltage	Single-phase 176V-264V	Output voltage	220V.accuracy±7%
lnput voltage	three-phase 208-520V	Output voltage	380V.accuracy2%～7%
lnput voltage	three-phase 266V-494V	Output voltage	380V.accuracy±2%
lnput voltage	Three-phase 304V-456V	Output voltage	380V.accuracy±1%
Frequency	50Hz±1Hz	Response time (jump of output± voltage110V)	≤30ms
Waveform distoriton	≤3%	Noise	<60dB(distance:1m)
Effciency	80%(full load)	it has short-circuit automatic protection,the output voltage steps down to zero when the load shows short circuit,however,when output short circuit takes 5min,it is not allowed to work continuously
Output voltage	220V.accuracy 2%-7%

Model and spec(CWY(CVT)series high-availability anti-interference constant voltage transformer)

Spec.(KVA)		Product size D×W×H(cm)	Weight(kg)	Spec.(KVA)		Product size D×W×H(cm)	WeightIkg)
Single-phase	CWY-0.3	37×17×20	21	Three-phase	CWY-1.5	57×27×43	80
	CWY-0.5	33×27×29	27		CWY-3	70×29×47	195
	CWY-1	45×25×45	40		CWY-6	77×49×40	330
	CWY-2	49×25×45	60		CWY-9	89×49×45	580
	CWY-3	60×32×77	90		CWY-15	89×56×51	650
	CWY-5	60×32×47	120		CWY-20	106×64×56	900
	CWY-10	86×67×117	330		CWY-30	106×64×56	1250
