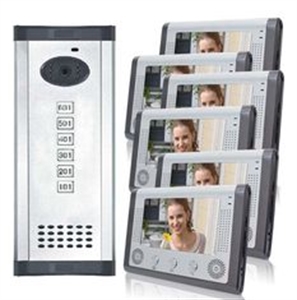

7 Inch Large Wired Villa Video Door Phone With Touch LCD Screen

SKU: FS00039623

Reproduction is welcome and allowed for free circulation only.

Place of Origin:	china
Brand Name:	TA-RF
Certification:	CE ROHS FCC
Model Number:	TA-002

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Depends on product and order quantity
Packaging Details:	One PCS /carton +shipping carton
Delivery Time:	15days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3000PCS a month

Detailed Product Description

Product Name:	7 Inch Large Wired Villa Video Door Phone	Wiring:	4 Wires
Min. Illumination:	0.5Lux	Power:	DC15V-1.2A
MATERIAL:	Plastic Body+Metal Panel	LCD BRAND:	HANCAI

7 Inch Large Wired Villa Video Door Phone With Touch LCD Screen

quick details :7-inch doorbell for 4 apartments,Color CMOS / CCD camera with 5 m cable,with a separate call on each floor,with function of intercom, unlock, monitor and so on.MonitorScreen: 7” TFT LCD(Two families use.specially designed for households)Power source: AC100V-240V/50-60Hz Effective pixels:480*234*3Power: ≤14W(operation) ≤2W(standby)Wiring: 4 wiresDoor stationsStainless alloyIR camera (1/4” CCD or 1/4” CMOS)Min. Illumination: 0.5LuxVideo output: 1Vp-p/75ΩPower: DC15V-1.2AWires for Lock-camera connection.Working Temperature: -20°C to 50°C

ITEM	Description
INDOOR UNIT (inch)	7"
MATERIAL	Plastic body+Metal panel
INSTALLATION METHODS	Hanging Installation
SYSTEM	PAL/NTSC (OPTIONAL)
LCD BRAND	HANCAI
MODEL	TP803
PIXELS	840*234
VIEWING ANGLE(°)	65/65/40/65
BRIGHTNESS(cd/m2)	250
INDOOR UNIT DIMENSION(mm)	260 * 165.5 * 34 mm
NET WEIGHT(g)	680g
Definition	>420TVL
POWER CONSUMPTION	8W
DELAY CALLING TIME(S)	120S±10%
DELAY MONITORING TIME(S)	40S±10%
VALID DISTANCE	50M(6*0.65MM²)
TRAMSMITTING DSTANCE OF THE IMAGE	ABOUT 200M
WORKING TEMPERATURE(°C)	-10°C~+50°C
STORAGE TEMPERATURE(°C)	-20°C~+60°C
CAMERA
OUTDOOR UNIT DIMENSION(mm)	126 * 56 * 33mm
MATERIAL	Plastic Covers+Metal body
INSTALLATION METHODS	Hanging Installation
CAMERA TYPE	COLOR CMOS1030 OR COLOR CCD
NET WEIGHT(g)	190g
PIXELS	PAL:628582 NTSC:510492
POWER CONSUMPTION(W)	4W
RESOLUTION	>420 LINE
SYSTEM	PAL/NTSC (OPTIONAL)
FOCUS(mm)	3.6mm
VIEWING ANGLE(°)	92°
WORKING TEMPERATURE(°C)	-10°C~+50°C
STORAGE TEMPERATURE(°C)	-20°C~+60°C
Color box size(1 to 1):	291911cm
PACKAGE(PCS/CTN) (1 to 1)	8PCS/CTN
G.W.(KG)/set	2.00KG
N.W.(KG)/set	1.56KG
