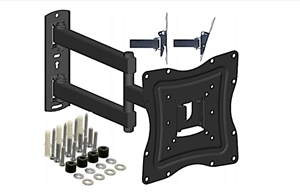

Picture of Adjustable Swivel Universal TV Hanger Mount for 17 - 42 '' TVs

Adjustable Swivel Universal TV Hanger Mount for 17 - 42 '' TVs

SKU: FS9100250
If your TV set has mounting holes that fall within this range and does not exceed a weight of 25 kg, the presented bracket will fit.
Reproduction is welcome and allowed for free circulation only.


Adjustable Swivel Universal TV Hanger Mount for 17 - 42 '' TVs

Description
Universal holder, hanger for TVs / monitors with the VESA standard max 200x200
Adjustable Swivel TV MOUNT from 17 - 42 ''
Steel structure with large wall plate. strength up to 25 kg
Universal wall mount for televisions of 17 - 42 ”inches
with adjustable tilt and swivel

THE MOUNT FITS all TV / Monitor Models
The presented grip is very strong and universal.

It has smoothly adjustable spacing of mounting holes from 75x75mm to 200x200mm (the first value is the distance between the horizontal holes, the second value is the distance between the vertical holes).

If your TV set has mounting holes that fall within this range
and does not exceed a weight of 25 kg, the presented bracket will fit.

TECHNICAL SPECIFICATION:
Permissible load (kg) 25
Diagonal screen size (inch) 17 "- 42"
Distance from the wall 50 - 420mm
Vertical angle adjustment (tilt): +5 / -15 degrees
Horizontal angle adjustment: 180 degrees
Black colour
Maximum size of the TV / Monitor mount: 200x200mm
VESA: 75x75, 100x100, 200x200, 100x200, 200x100

DISTANCE from the wall
50 - 420 mm,
which makes it incredibly versatile and attractive.

The set includes screws and mounting pins
Adjusting the angle of operation of the handle
+ 5 / - 15 ° (up / down),
+ / - 180 ° (right / left),
which is able to meet the requirements of even the most demanding users.

VESA standard
The VESA standard is the worldwide standard for how to attach a mount to a TV. It is determined by the spacing of holes on the back of the TV set in millimeters.

The most common parameters for the spacing of the holes are: 50x50, 75x75, 100x100, 200x100, 200x200, 400x400, 600x200, 600x400, 800x400 mm.

Adjustable Universal TV BRACKET Type Rotating Tilt Fixed Other
The distance between the mounting holes in this hanger

VESA [width X height]:
75 x 75
100 x 100
100 x 150
100 x 200
150 x 150
200 x 200
200 x 100
200 x 150
and other indirect
Adjustable Universal TV MOUNT HANGER Maximum load 25 kg

The SET includes:
Handle
Installation instructions
A set of bolts and nuts needed for assembly
