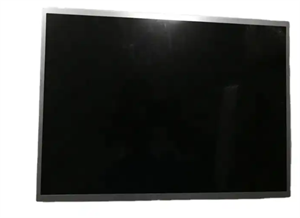

Image de New A+ 19.5 inch LCD Display Panel

New A+ 19.5 inch LCD Display Panel

SKU: FS9103732
Diagonal Size 19.5" Panel Type a-Si TFT-LCD, LCM Resolution 1440(RGB)×900, WXGA+ 87PPI Pixel Format RGB Vertical Stripe Active Area 418.608(W)×262.35(H) mm Bezel Opening
Reproduction is welcome and allowed for free circulation only.


New A+ 19.5 inch LCD Display Panel

Diagonal Size
19.5"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1440(RGB)×900, WXGA+ 87PPI
Pixel Format
RGB Vertical Stripe
Active Area
418.608(W)×262.35(H) mm
Bezel Opening
422.2(W)×265.9(H) mm
Outline Dim. 444.22(H)×286.6(V) ×10.7(D) mm Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M 72% NTSC Light Source WLED [16S2P] , 30K hours , W/O Driver
Weight 1.64Kgs (Typ.) Designed For
Frame Rate 60Hz Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C


Key attributes
Industry-specific attributes
Type
Standard
Display Size
19.5
Other attributes
Place of Origin
origin
Brand Name
original brand
Size
19.5 inch
Condition
100% original new A+
Packaging and delivery
Packaging Details
Paper box
Port
Shenzhen
attribute-list
Supply Ability
200 Piece/Pieces per Month
Show more
Lead time
Quantity (pieces) 1 - 10 11 - 100 > 100
Lead time (days) 2 4 To be negotiated
